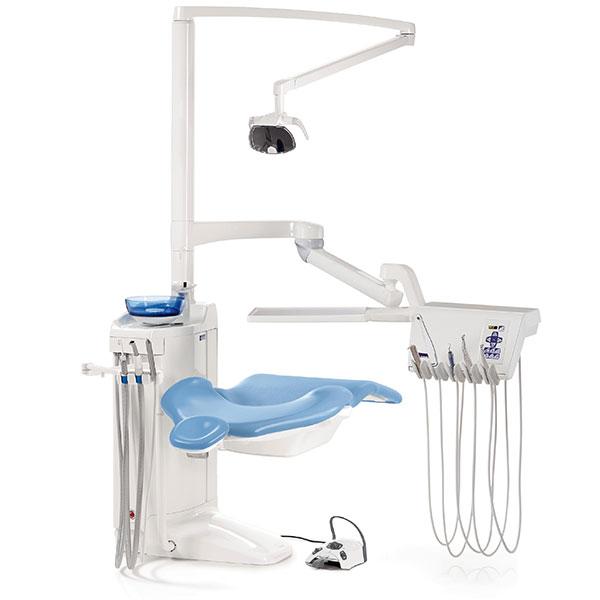

Planmeca Compact i Classic

Ergonomics is the basis for Planmeca product design. Planmeca Compact i design solutions support ergonomic treatment workflow. Daily work at the dental practice is straightforward, pleasant and efficient without compromise. Planmeca Compact i Classic is the ideal choice for the needs of general dentistry.

Delivery System	Continental or Traditional
Mounting	Chair integrated to unit
Chair Features/Options	Wide, stable support for back and arms. Slim upper backrest for better access. Side-lifting mechanism together with a thin backrest provides exceptional access for operator and assistant. Compensating movement of backrest provides ideal comfort.
Rapid Left/Right Conversion	No
Operating Light Options	SingLED Operating Light included
No or Air/Water Lines	5
No of Lines with Fibre Optics	5
Maximum Handpiece Holders	5
Control Panel Options	Sealed hygienic panel(s) for controlling chair, spittoon, operating light, instrument, and programming functions.Tactile positive control push buttons. LED display indicates the activation of unit and instrument functions.
Foot Control	Wired
Integrated Factory Options	Brushless Electric Micromotor Curing Light Intraoral Camera Ultrasonic Scaler Glass Cuspidor LCD Monitor Articulated Arm
Dealer Fitted Options	Large number of available instruments for instrument console and for assistant side - all available as a post-installation retrofit.
Assistants Instrumentation	Two assistant arm options with wide instrument choice including syringe, HVE and SE suction hoses as standard. Curing Light, Intraoral Camera and addition suction may be added.
Wet or Dry Vacuum	Wet or Semi Wet Standard Dry Suction Optional
ISO 11143 Amalgam Retention	Optional (Duerr amalgam retention fitted where required)
Spittoon Drain Valve	Optional
Waterline Disinfection	Automatic short and long instrument hose and waterline flushing system. Integrated flushing holder as a standard.
Warranty	2 Year Parts / 2 Year Labour
States where support is available	NSW, ACT, QLD, VIC, SA, WA, NT, TAS and NZ
Country of Manufacture	Finland
