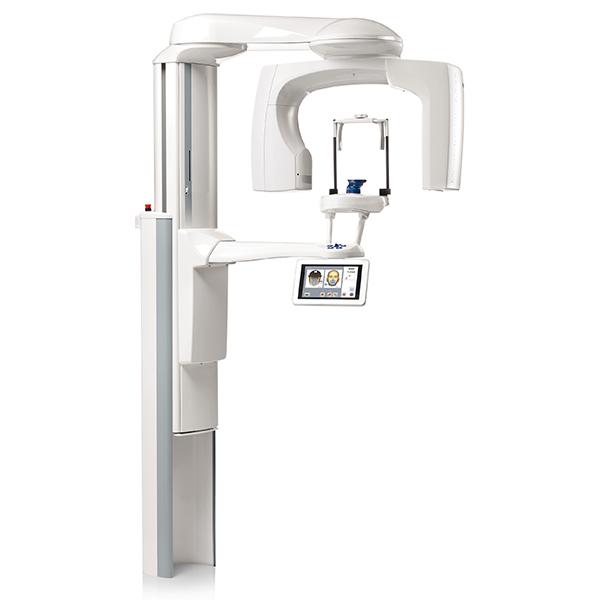

Planmeca ProMax 3D Max

Planmeca's ProMax 3D Max x-ray unit complies with a multitude of diagnostic requirements including endodontics, periodontics, orthodontics, implantology, dental and maxillofacial surgery, TMJ analysis and ENT (Ear, nose and throat) applications. The 3D image volume range covers everything between singel tooth and the whole skull region.

Imaging Type	CBCT
Sensor Type	Amorphous Silicon Flat Panel Sensor with Csl scintillator
Fields Of View	42 diameter x 50mm 230 diameter x 260mm (Stitched)
Patient Positioning	Standing facing out
Imaging Time - Pan	N/A
Imaging Time - Ceph	N/A
Imaging Time - CBCT	12 to 33 seconds
Reconstruction Time for CBCT
Voxel Size	100-600 microns
Anode Type	Fixed
Automatic Exposure Control	Yes
Image Depth	12 Bit
DICOM Export	Yes
Software Included and Operating System	Planmeca Romexis - Windows or Mac OS
Network Connection	Ethernet
Bridging to Practice Management Software	Links to all major software available
Training Included	Yes
Warranty	2 Year Parts / 2 Year Labour
States where support is available	NSW, ACT, QLD, VIC, SA, WA, NT, TAS, NZ
Country of Manufacture	Finland
