PRODUCTS > Equipment > Radiography > X-Ray Unit Intraoral

Sopro X-Mind Unity

X-Mind Unity is a revolutionary new intraoral X-ray generator that integrates Sopix X-ray sensors all in the one unit. Winner of a 2013 Red Dot Design award, X-Mind Unity uses the patented ACE technology in Sopix sensors to allow you to control patient exposure to radiation and record the dosage in Sopro Imaging. Once the patient has received the sufficient dose necessary to image, the sensor communicates with the generator to stop emissions. The result is optimised images with patient safety at the forefront, as exposure to radiation can be reduced by up to 52% (Radiation reduction varies on patient morphology). Having a small focal spot of 0.4mm and a constant voltage of 60 kV, 65kV or 70kV, X-Mind Unity provides reproducible results with highly defined images. With unparalleled flexibility, whether top or bottom mount and three different arm lengths (40, 80 and 110cm) available, X-Mind Unity can be adapted into any dental workspace.

Sopro X-Mind Unity

AC or DC	DC
Voltage	60, 65 or 70 kV (Selectable)
Current	4 to 7 mA
Anode Material	Tungsten
Effective Arm Reach	188cm (with 40cm arm) 228cm (with 80cm arm) 258cm (with 110cm arm)
Exposure Time Range	0.02 to 2.0 Seconds
Manual or auto exposure time setting	Manual or Auto available
Exposure Presets	Personalised and Pre-programmed settings
Digital Setting	Yes
Focal Distance	200 mm (Short Cone) 300 mm (Long Cone)
Focal Spot	0.4 mm
Mounting	Wall mounting available Mobile version available in 2014
Training Included	Yes
Warranty	2 Year Parts / 2 Year Labour
States where support is available	NSW, ACT, QLD, VIC, SA, WA, NT, TAS, NZ
Country of Manufacture	Italy

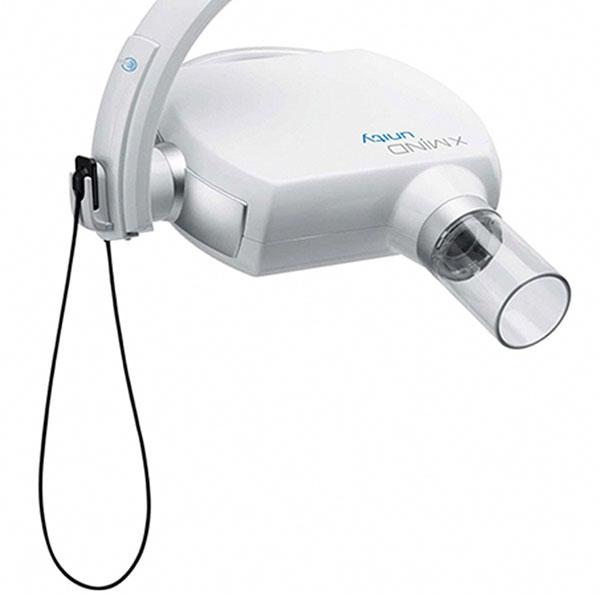

Sopro X-Mind Unity.

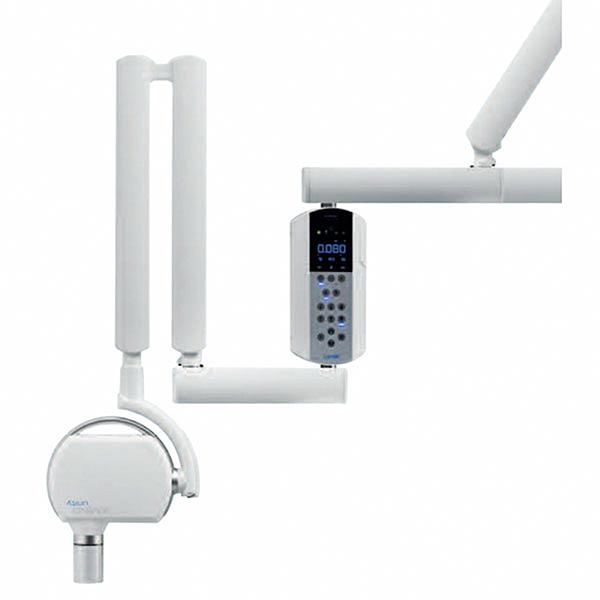

Sopro X-Mind Unity.

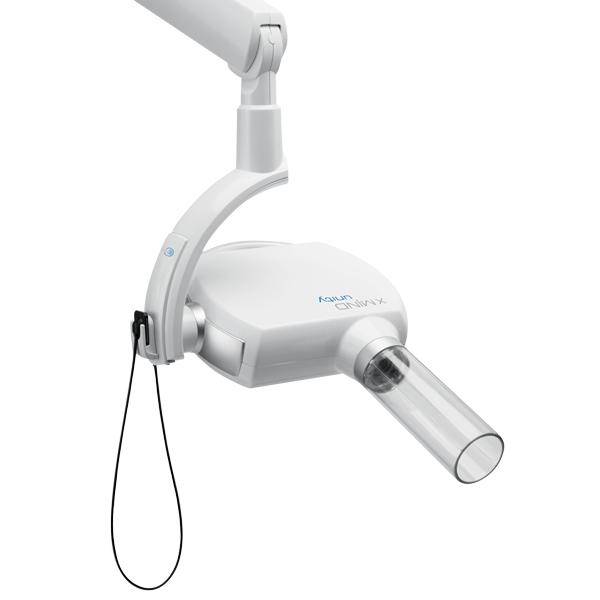

Sopro X-Mind Unity.

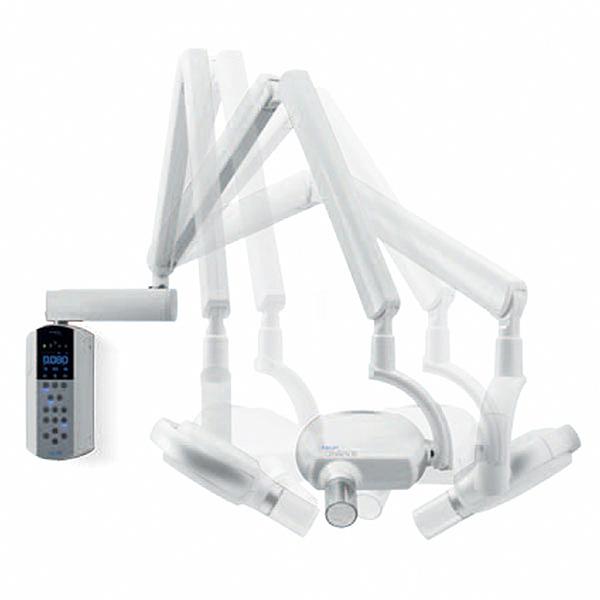

Sopro X-Mind Unity.
Sopro X-Mind Unity.
